Various Cylinders
We offer expert repair and rebuilding services for a wide variety of various cylinder sizes and types including Commercial Shearing, Galion and Hyco. We also repair Perfection, Ward, Heil and Custom Hoist, as well as most other major brands.

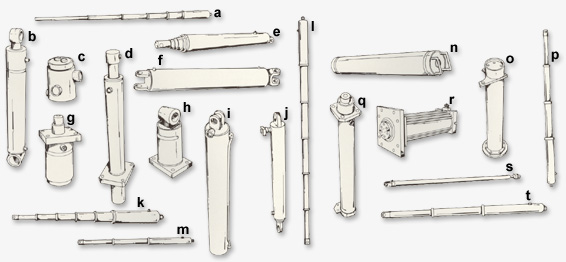

Below is a selection of various cylinders we repair and rebuild:
a. 5 stage double acting hydraulic cylinder, series HDSDT, shown fully extended.
b. pineye mount hydraulic cylinder,
5" bore with 26" stroke dump arms on
refuse trucks.
c.hydraulic swivel or use where hydraulic pressure must be transferred from 180º to 360º as on a rotating lift maintenance truck.
d.hydraulic cylinder, 6"
bore by 48" stroke, for use in baling press.
e. 5 stage single acting telescopic
hydraulic cylinder with 300" stroke. Excellent
for dump trucks and drilling rigs.
f.hydraulic cylinder, 6"
bore by 36" stroke for boom on concrete pumping
truck.
g. Hydraulic cylinder, 10"
bore by 7" stroke, double acting, high pressure
for use on special press.
h.10" bore by 5 1/2"
stroke, 3,000 P.S.I., hydraulic cylinder for special
presses.
i.Hydraulic cylinder with 5 1/2"
bore and 42" stroke. Used to operate boom
on concrete pumping truck.
j. 6" bore, 35" stroke,
double acting, high pressure hydraulic cylinder,
for use on a concrete truck.
k. 5 stage, single acting telescopic hydraulic cylinder used in scissor lift.
l. 5 stage, single acting telescopic
hydraulic cylinder with a 350" stroke. Designed
for mobile, off the road, equipment.
m. Two stage, single acting telescopic hydraulic cylinder used in platform hoist.
n. Piston type accumulator, gas-piston type for the storage of “instant-energy” to do useful work when required.
o. A mast cylinder on a Clark fork lift
p. 3 hydraulic cylinder with
140" stroke. Manufactured for material handling
airport equipment.
q. 3 1/2" bore by 32 1/2"
stroke hydraulic cylinder used on mobile concrete
pumping rigs.
r.pineye mount hydraulic cylinder,
5" bore with 26" stroke for dump arms
on refuse trucks.
s. Hydraulic cylinder, with clevis
mount, 2 1/2" bore, 66" stroke used
as extension cylinders for outrigger on mobile
hydraulic sign hanging truck.
t. 2 stage, single acting telescopic
hydraulic cylinder with 100" stroke. Made
for airport baggage handling equipment.
